Bosch Rexroth continues to redefine the landscape of industrial automation through its cutting-edge linear motion technology. As global industries transition toward Industry 4.0, the demand for precision, efficiency, and sustainability has never been higher. Rexroth linear motion guides and products represent the pinnacle of German engineering, offering a comprehensive ecosystem designed to meet the rigorous demands of modern manufacturing. From heavy-duty machine tools to high-speed semiconductor assembly, these solutions provide the backbone for mechanical movements across the globe.
The Evolution of Precision: Ball and Roller Rail Systems
At the core of the Rexroth portfolio are the Ball Rail Systems (BSPC) and Roller Rail Systems (RSPC). These components are engineered for maximum rigidity and high load-capacity. The Ball Rail Systems are known for their smooth travel and versatility. They utilize high-quality steel and sophisticated recirculating ball units to minimize friction. This results in reduced heat generation and extended service life.
For applications requiring extreme stiffness, the Roller Rail Systems are the industry standard. By using rollers instead of balls, the contact surface area is increased, allowing for significantly higher load ratings. These systems are essential in large-scale milling machines and aerospace manufacturing where micron-level accuracy is non-negotiable. Both systems feature an interchangeable design, meaning runner blocks and guide rails of the same size can be combined freely, simplifying logistics and maintenance for plant operators.
Integrated Measuring and Digital Intelligence
Modern linear motion is no longer just about mechanical movement; it is about data. Rexroth’s Integrated Measuring Systems (IMS) are a testament to this shift. By embedding the sensor directly into the linear guide, Rexroth eliminates the need for external scales. This saves space and protects the measuring equipment from harsh industrial environments, such as chips, dust, and coolant.
The IMS provides absolute or incremental position data with incredible resolution. When paired with the Smart Function Kit, users can transform mechanical components into intelligent subsystems. These kits include pre-configured hardware and software packages that allow for rapid commissioning. The software provides real-time monitoring of force, position, and speed, enabling predictive maintenance strategies that prevent costly downtime.
Linear Modules and Actuators: Ready-to-Install Solutions

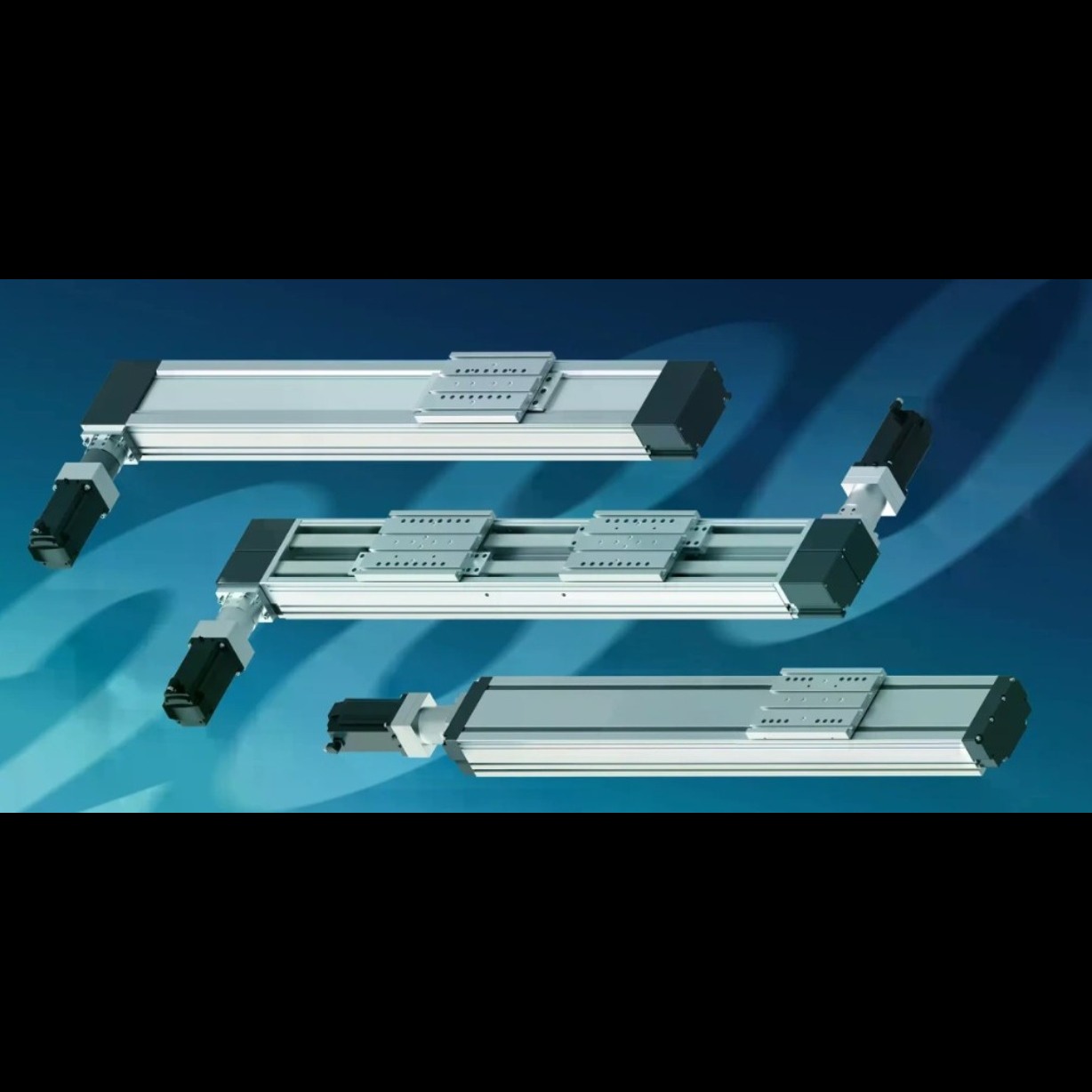

To reduce engineering time for customers, Rexroth offers a wide array of Linear Modules. These are pre-assembled units consisting of a frame, a drive element (such as a ball screw or belt drive), and a linear guide. These modules are 'plug-and-play, ' allowing designers to integrate complex motion sequences without selecting individual components.
The latest generations of these modules focus on compact dimensions and high power density. They are widely used in pick-and-place applications, packaging lines, and laboratory automation. By utilizing aluminum profiles, Rexroth ensures these units are lightweight yet structurally sound, contributing to the overall energy efficiency of the machine.
Sustainability and Lubrication Innovation
Sustainability is a key pillar of the Bosch Rexroth philosophy. The 'Green' initiative in linear technology focuses on reducing the consumption of lubricants. Rexroth linear guides feature optimized lubrication channels and innovative seals that keep grease inside the runner block for longer periods. In many applications, these units are 'lubricated for life, ' significantly reducing the environmental footprint and maintenance costs.
Furthermore, the materials used in manufacturing are selected for their durability and recyclability. The high-precision manufacturing process ensures that there is minimal waste, and the long lifecycle of the products means fewer replacements are needed over the decades.
Addressing Global Industrial Challenges
In today's volatile market, flexibility is essential. Rexroth’s modular approach allows for rapid reconfiguration of production lines. Whether it is a small-scale medical device manufacturer or a massive automotive assembly plant, the scalability of Rexroth products ensures that they remain relevant. The digital twin capabilities offered via Rexroth’s engineering tools allow engineers to simulate motion profiles before a single piece of hardware is ordered, reducing the risk of design errors.
The global availability of Rexroth parts ensures that multinational companies can standardize their machinery across different continents, knowing that local support and spare parts are always accessible. This reliability is why Rexroth remains a preferred partner for Fortune 500 companies and specialized engineering firms alike.
Core Components:
Ball Rail Systems 2. Roller Rail Systems 3. Linear Bushings 4. Precision Steel Shafts 5. Runner Blocks 6. Guide Rails 7. Ball Screws 8. Planetary Screw Drives 9. Linear Modules 10. Actuators 11. Ball Transfer Units 12. Linear Slides 13. Electromechanical Cylinders 14. Integrated Measuring Systems (IMS) 15. Smart Function Kit 16. Profiled Rail Systems 17. Cam Roller Guides 18. Screw Assemblies 19. Linear Motion Systems 20. Multi-axis Systems
Technical Specifications:
21. High Load Capacity 22. Rigidity 23. Precision 24. Repeatability 25. High Speed 26. Acceleration 27. Friction Coefficient 28. Travel Life 29. Preload Classes 30. Accuracy Classes 31. Dynamic Load Rating 32. Static Load Rating 33. Stroke Length 34. Minimal Lubrication 35. Sealing Technology 36. Corrosion Resistance 37. Chrome Plating 38. Stainless Steel 39. Aluminum Profiles 40. Moment Loads
